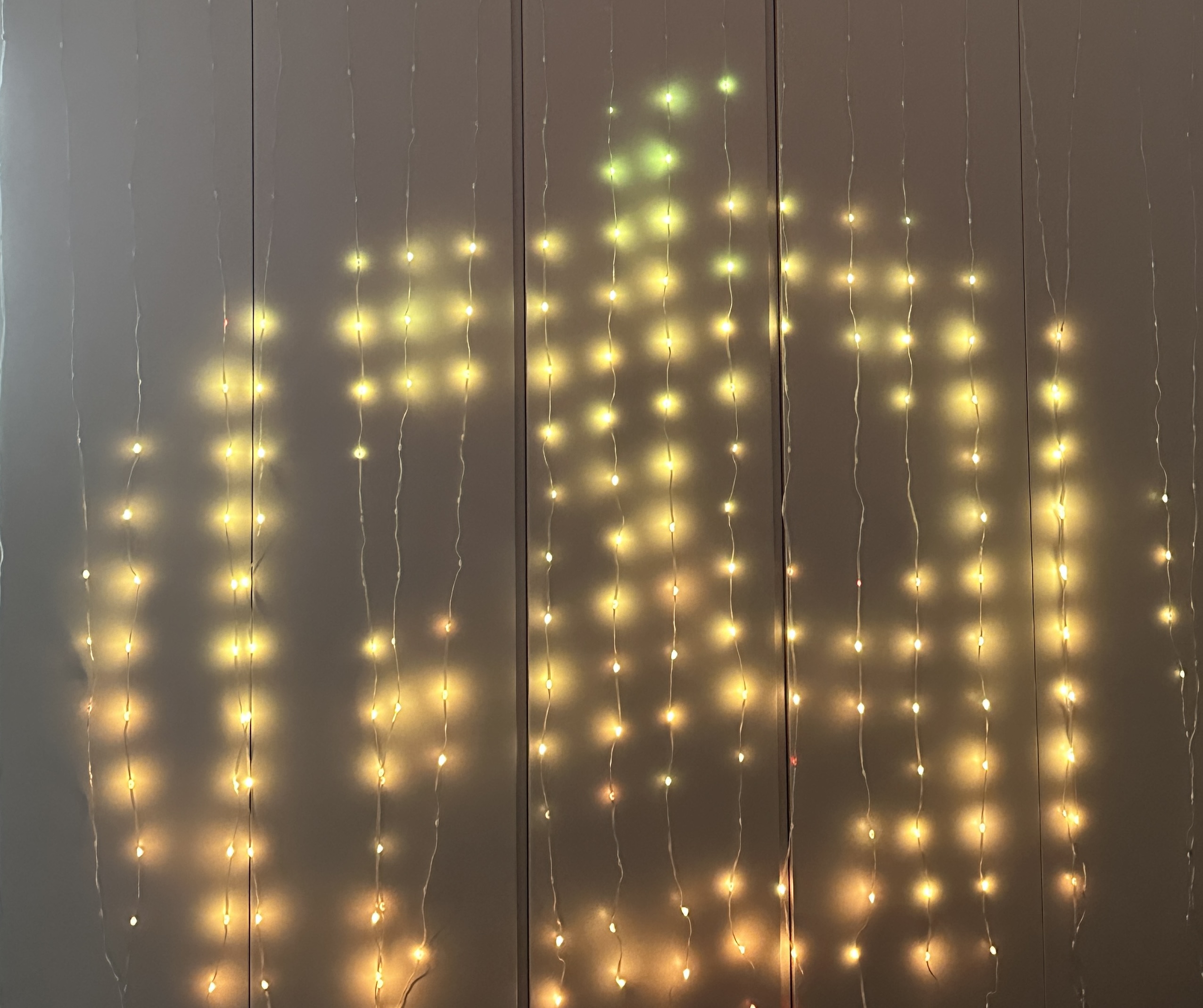

Curtain lights are built from a main support line that holds multiple downward LED strands, forming a clean, grid-like lighting structure.
- The horizontal top line is structured to carry numerous vertical strands without voltage drop or brightness variation.
- Each vertical strand is arranged using stable LED intervals for an orderly and precise layout.
- All LEDs and wiring points follow uniform assembly standards to maintain even brightness across every drop.
Lengths & Configuration
Standards
Wire Material: PVC or Copper
LED Quantity: 200L/ 300L/ 600L/ 900 L LEDs (customizable)
Spacing: 10cm(3.94inch) (customizable)
Dimensions(Height*Width): 3m(9.84ft)*3m(9.84ft)/ 3m(9.84ft)*2m(6.56ft)/ 3m(9.84ft)*1m(3.28ft) (customizable)
LED Color: Warm White/ Cool White/ Four Colors/ RGB
Wire Color: Original for PVC Wire/ Customizable for Copper Wire
Plug: Batteries or USB
Waterproof Rating: IP44
Product Core Structural Features
Structured Drop Layout
The system is organized around a single upper cable, where each drop strand is positioned according to a fixed interval.
This layout ensures that the vertical lines remain aligned and evenly distributed once the entire set is assembled.
Stabilized Wiring System
Soldering points, insulation layers, and connector joints are reinforced to keep the electrical flow consistent across long runs.
Both the top cable and the vertical strands are designed to work together without causing imbalance in brightness or current load.

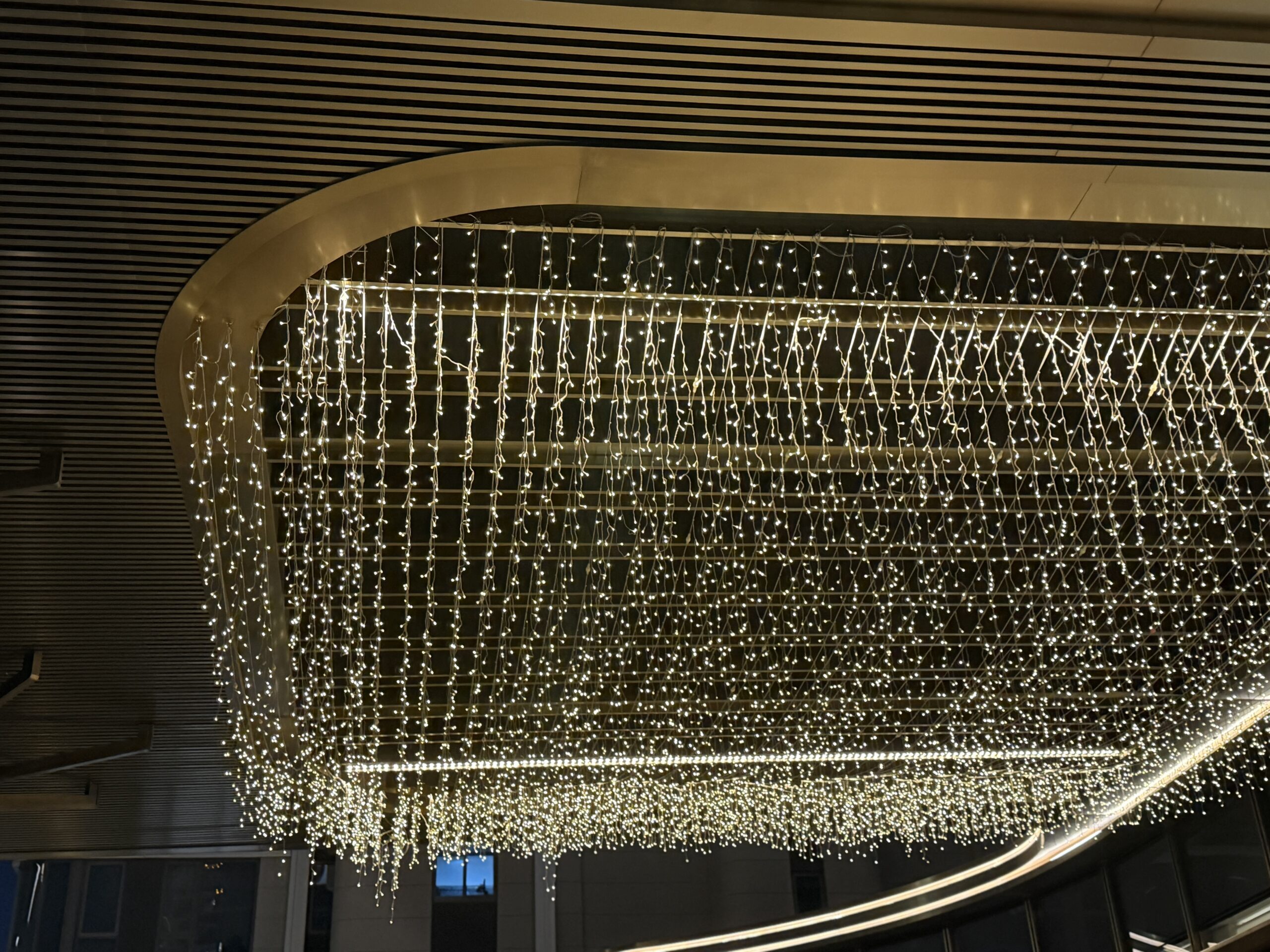

Lengths & Configuration
Standards
Wire Material: PVC
LED Quantity: 400 L/ 960L/ 3060L LEDs (customizable)
Spacing: 10cm(3.94inch) (customizable)
Dimensions(Height*Width): 2m(6.56ft)*2m(6.56ft)/ 3m(9.84ft)*3m(9.84ft) (customizable)
LED Color: RGB
Wire Color: Original for PVC Wire
Plug: Plug
Waterproof Rating: IP65
